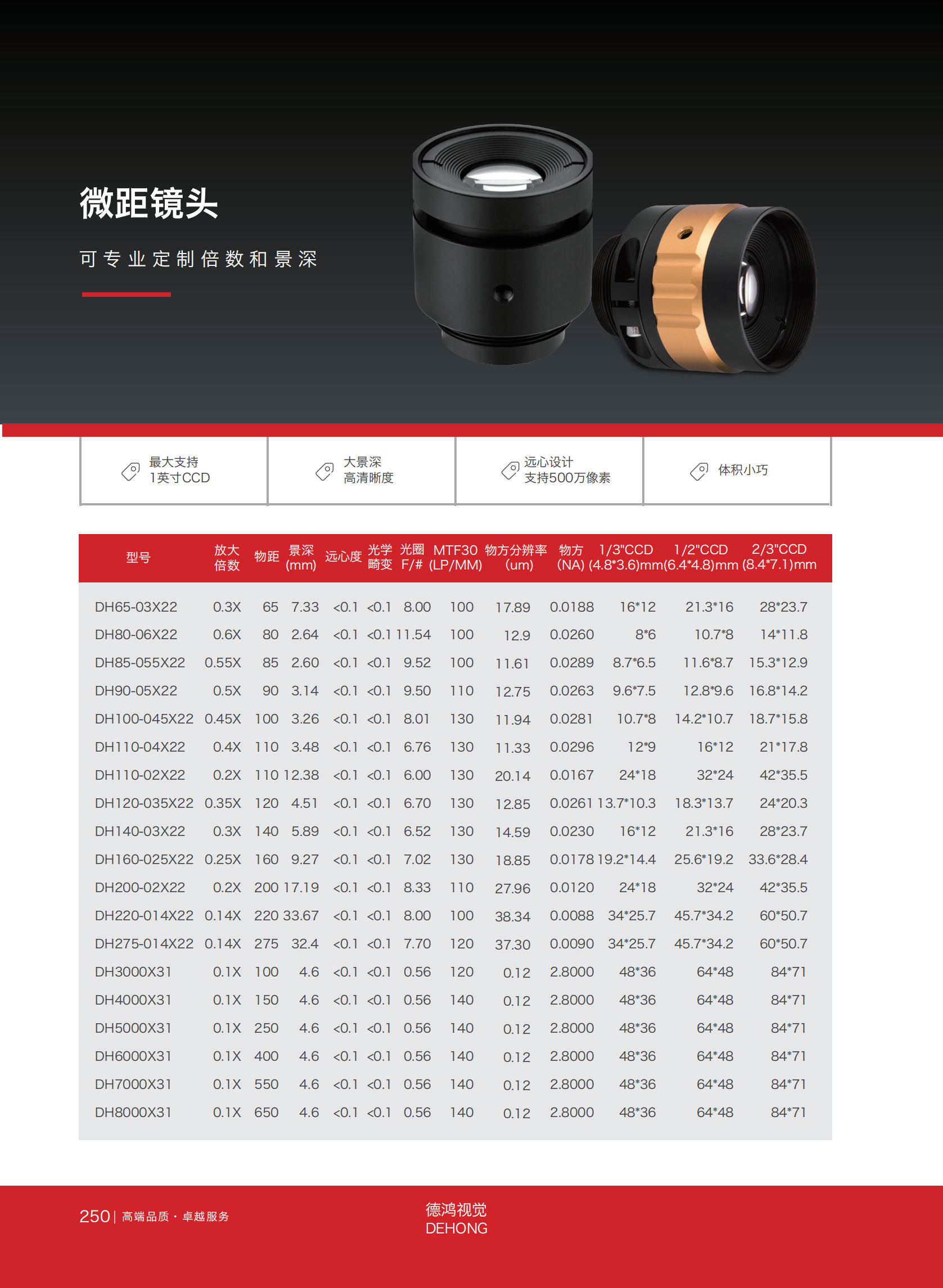

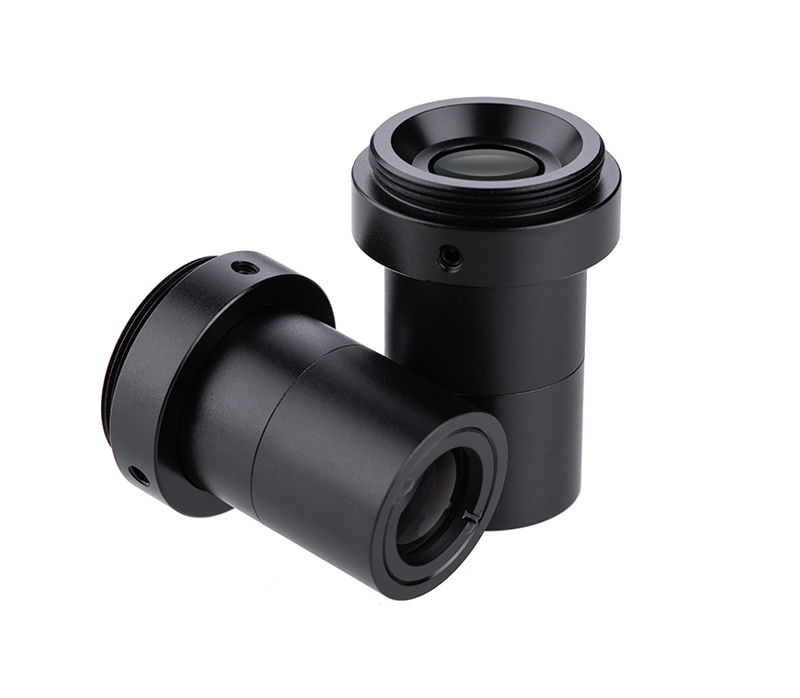

產品名稱：微距鏡頭
| 型號 | 放大倍數 | 物距 | 景深 (mm) | 光圈 F/# | MTF30 （lp/mm) | 物方分辨率 | 物方 （NA) | 遠心度 | 光學畸變 | 1/3"CCD (4.8*3.6)mm | 1/2"CCD (6.4*4.8)mm | 2/3"CCD (8.4*7.1)mm |
| DH65-03X22 | 0.3X | 65 | 7.33 | 8.00 | 100 | 17.89 | 0.0188 | <0.1 | <0.1 | 16*12 | 21.3*16 | 28*23.7 |
| DH80-06X22 | 0.6X | 80 | 2.64 | 11.54 | 100 | 12.9 | 0.0260 | <0.1 | <0.1 | 8*6 | 10.7*8 | 14*11.8 |
| DH85-055X22 | 0.55X | 85 | 2.60 | 9.52 | 100 | 11.61 | 0.0289 | <0.1 | <0.1 | 8.7*6.5 | 11.6*8.7 | 15.3*12.9 |
| DH90-05X22 | 0.5X | 90 | 3.14 | 9.50 | 110 | 12.75 | 0.0263 | <0.1 | <0.1 | 9.6*7.5 | 12.8*9.6 | 16.8*14.2 |
| DH100-045X22 | 0.45X | 100 | 3.26 | 8.01 | 130 | 11.94 | 0.0281 | <0.1 | <0.1 | 10.7*8 | 14.2*10.7 | 18.7*15.8 |
| DH110-04X22 | 0.4X | 110 | 3.48 | 6.76 | 130 | 11.33 | 0.0296 | <0.1 | <0.1 | 12*9 | 16*12 | 21*17.8 |
| DH110-02X22 | 0.2X | 110 | 12.38 | 6.00 | 130 | 20.14 | 0.0167 | <0.1 | <0.1 | 24*18 | 32*24 | 42*35.5 |
| DH120-035X22 | 0.35X | 120 | 4.51 | 6.70 | 130 | 12.85 | 0.0261 | <0.1 | <0.1 | 13.7*10.3 | 18.3*13.7 | 24*20.3 |
| DH140-03X22 | 0.3X | 140 | 5.89 | 6.52 | 130 | 14.59 | 0.0230 | <0.1 | <0.1 | 16*12 | 21.3*16 | 28*23.7 |
| DH160-025X22 | 0.25X | 160 | 9.27 | 7.02 | 130 | 18.85 | 0.0178 | <0.1 | <0.1 | 19.2*14.4 | 25.6*19.2 | 33.6*28.4 |
| DH200-02X22 | 0.2X | 200 | 17.19 | 8.33 | 110 | 27.96 | 0.0120 | <0.1 | <0.1 | 24*18 | 32*24 | 42*35.5 |
| DH220-014X22 | 0.14X | 220 | 33.67 | 8.00 | 100 | 38.34 | 0.0088 | <0.1 | <0.1 | 34*25.7 | 45.7*34.2 | 60*50.7 |
| DH275-014X22 | 0.14X | 275 | 32.4 | 7.70 | 120 | 37.30 | 0.0090 | <0.1 | <0.1 | 34*25.7 | 45.7*34.2 | 60*50.7 |
| DH3000X31 | 0.1X | 100 | 4.6 | 0.56 | 120 | 0.12 | 2.8000 | <0.1 | <0.1 | 48*36 | 64*48 | 84*71 |
| DH4000X31 | 0.1X | 150 | 4.6 | 0.56 | 140 | 0.12 | 2.8000 | <0.1 | <0.1 | 48*36 | 64*48 | 84*71 |
| DH5000X31 | 0.1X | 250 | 4.6 | 0.56 | 140 | 0.12 | 2.8000 | <0.1 | <0.1 | 48*36 | 64*48 | 84*71 |
| DH6000X31 | 0.1X | 400 | 4.6 | 0.56 | 140 | 0.12 | 2.8000 | <0.1 | <0.1 | 48*36 | 64*48 | 84*71 |
| DH7000X31 | 0.1X | 550 | 4.6 | 0.56 | 140 | 0.12 | 2.8000 | <0.1 | <0.1 | 48*36 | 64*48 | 84*71 |
| DH8000X31 | 0.1X | 650 | 4.6 | 0.56 | 140 | 0.12 | 2.8000 | <0.1 | <0.1 | 48*36 | 64*48 | 84*71 |
