WTL 62 67 82 88mm

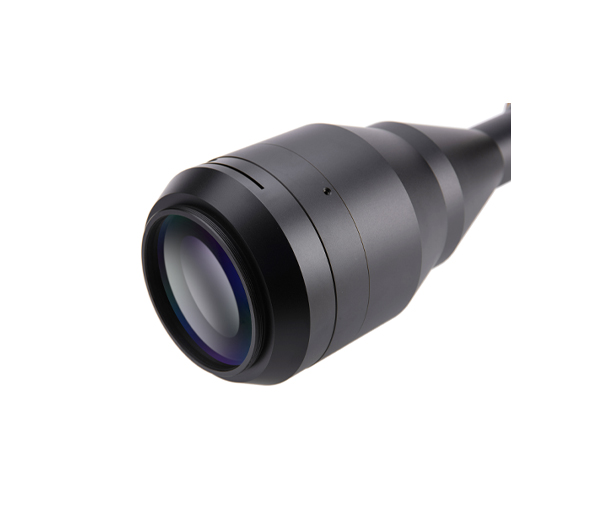

16K雙遠心鏡頭

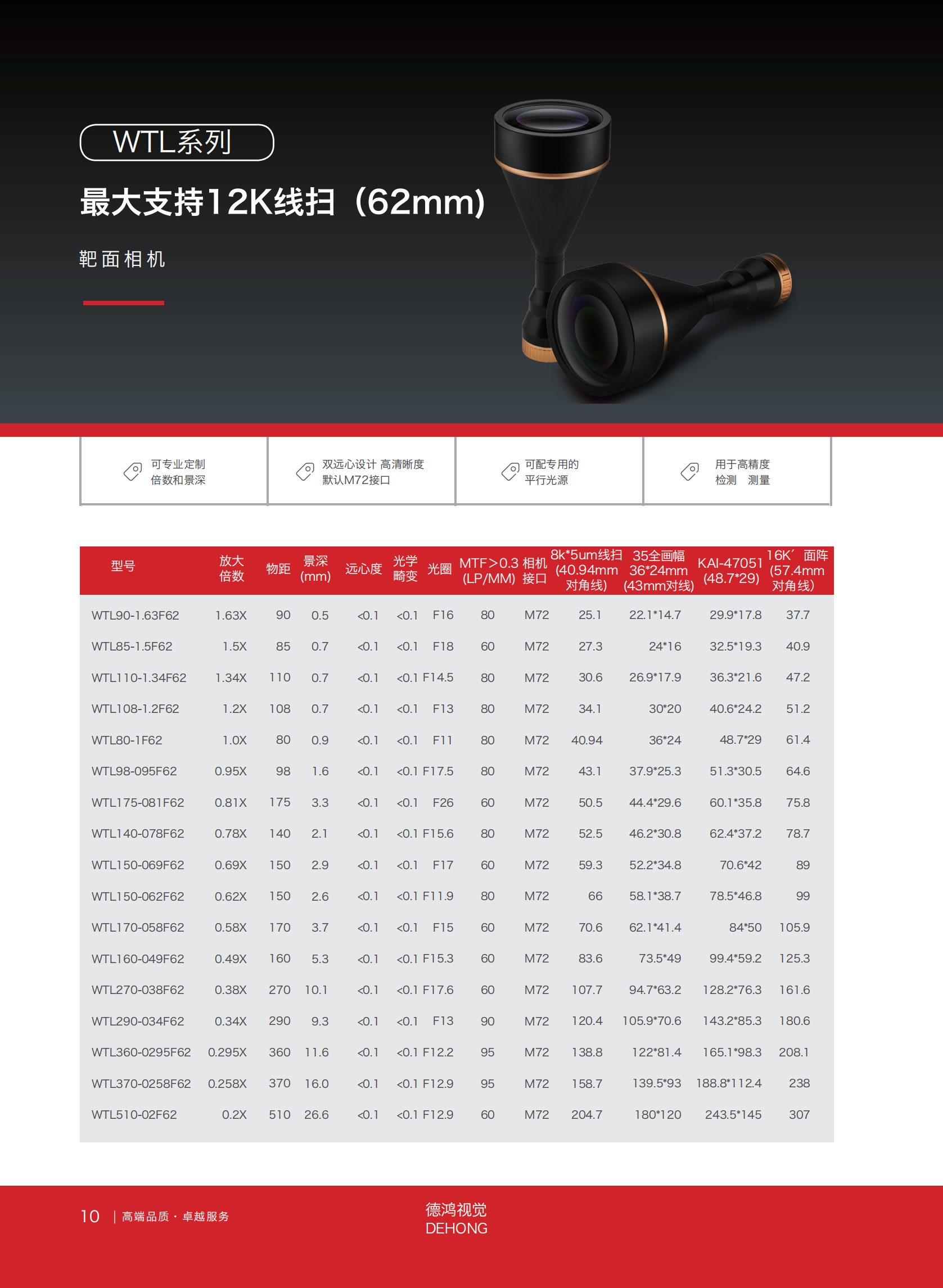

| 型號 | 放大倍數 | 物距 | 景深 | 遠心度 | 光學畸變 | 分辨率 （um) | 光圈 (F) | MTF>0.3 (LP/MM) | 8k*5um線掃 (40.94mm對角線) | 35全畫幅36*24mm (43mm對角線） | KAI-47051 (48.7*29) | 12K*5um (61.4mm對角線） |
| WTL90-1.63F62 | 1.63X | 90 | 0.5 | <0.1 | <0.1 | 6.7 | F16 | 80 | 25.1 | 22.1*14.7 | 29.9*17.8 | 37.7 |
| WTL85-1.5F62 | 1.5X | 85 | 0.7 | <0.1 | <0.1 | 8.4 | F18 | 60 | 27.3 | 24*16 | 32.5*19.3 | 40.9 |
| WTL110-1.34F62 | 1.34X | 110 | 0.7 | <0.1 | <0.1 | 7.0 | F14.5 | 80 | 30.6 | 26.9*17.9 | 36.3*21.6 | 47.2 |
| WTL108-1.2F62 | 1.2X | 108 | 0.7 | <0.1 | <0.1 | 7.5 | F13 | 80 | 34.1 | 30*20 | 40.6*24.2 | 51.2 |
| WTL80-1F62 | 1.0X | 80 | 0.9 | <0.1 | <0.1 | 7.5 | F11 | 80 | 40.94 | 36*24 | 48.7*29 | 61.4 |
| WTL98-095F62 | 0.95X | 98 | 1.6 | <0.1 | <0.1 | 12.4 | F17.5 | 80 | 43.1 | 37.9*25.3 | 51.3*30.5 | 64.6 |
| WTL175-081F62 | 0.81X | 175 | 3.3 | <0.1 | <0.1 | 22.4 | F26 | 60 | 50.5 | 44.4*29.6 | 60.1*35.8 | 75.8 |
| WTL140-078F62 | 0.78X | 140 | 2.1 | <0.1 | <0.1 | 13.4 | F15.6 | 80 | 52.5 | 46.2*30.8 | 62.4*37.2 | 78.7 |
| WTL150-069F62 | 0.69X | 150 | 2.9 | <0.1 | <0.1 | 16.8 | F17 | 60 | 59.3 | 52.2*34.8 | 70.6*42 | 89 |
| WTL150-062F62 | 0.62X | 150 | 2.6 | <0.1 | <0.1 | 12.9 | F11.9 | 80 | 66 | 58.1*38.7 | 78.5*46.8 | 99 |
| WTL170-058F62 | 0.58X | 170 | 3.7 | <0.1 | <0.1 | 17.7 | F15 | 60 | 70.6 | 62.1*41.4 | 84*50 | 105.9 |
| WTL160-049F62 | 0.49X | 160 | 5.3 | <0.1 | <0.1 | 21.0 | F15.3 | 60 | 83.6 | 73.5*49 | 99.4*59.2 | 125.3 |
| WTL270-038F62 | 0.38X | 270 | 10.1 | <0.1 | <0.1 | 30.5 | F17.6 | 60 | 107.7 | 94.7*63.2 | 128.2*76.3 | 161.6 |
| WTL290-034F62 | 0.34X | 290 | 9.3 | <0.1 | <0.1 | 25.8 | F13 | 90 | 120.4 | 105.9*70.6 | 143.2*85.3 | 180.6 |
| WTL360-0295F62 | 0.295X | 360 | 11.6 | <0.1 | <0.1 | 28.0 | F12.2 | 95 | 138.8 | 122*81.4 | 165.1*98.3 | 208.1 |
| WTL370-0258F62 | 0.258X | 370 | 16.0 | <0.1 | <0.1 | 33.6 | F12.9 | 95 | 158.7 | 139.5*93 | 188.8*112.4 | 238 |
| WTL510-02F62 | 0.2X | 510 | 26.6 | <0.1 | <0.1 | 43.0 | F12.9 | 60 | 204.7 | 180*120 | 243.5*145 | 307 |

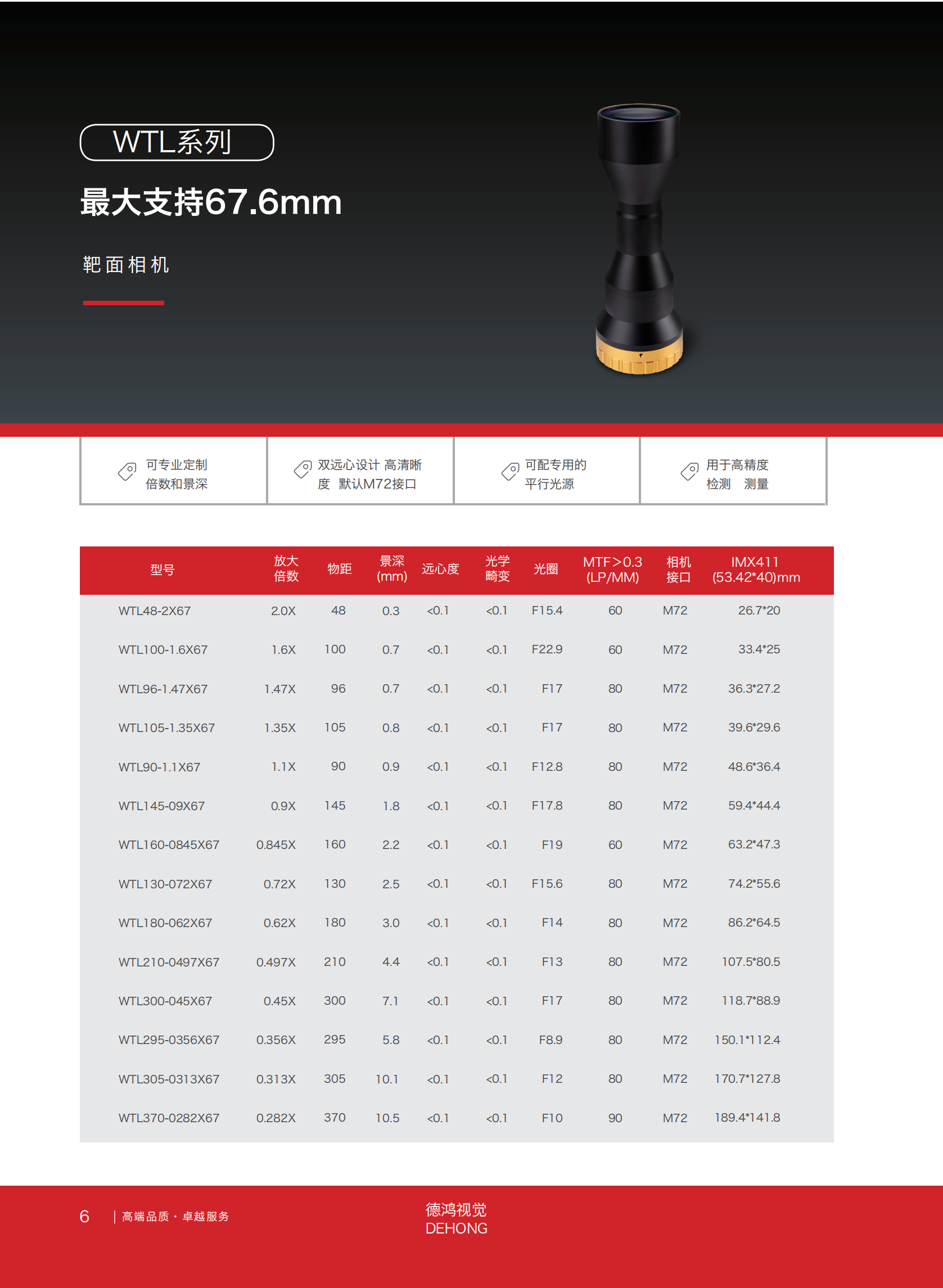

| 型號 | 放大倍數 | 物距 | 景深 （mm) | 遠心度 | 光學畸變 | 分辨率 （um) | 光圈 (F) | MTF>0.3 (LP/MM) | IMX411 (53.42*40)mm |
| WTL48-2X67 | 2.0X | 48 | 0.3 | <0.1 | <0.1 | 5.2 | F15.4 | 60 | 26.7*20 |
| WTL100-1.6X67 | 1.6X | 100 | 0.7 | <0.1 | <0.1 | 9.6 | F22.9 | 60 | 33.4*25 |
| WTL96-1.47X67 | 1.47X | 96 | 0.7 | <0.1 | <0.1 | 7.8 | F17 | 80 | 36.3*27.2 |
| WTL105-1.35X67 | 1.35X | 105 | 0.8 | <0.1 | <0.1 | 8.8 | F17 | 80 | 39.6*29.6 |
| WTL90-1.1X67 | 1.1X | 90 | 0.9 | <0.1 | <0.1 | 7.8 | F12.8 | 80 | 48.6*36.4 |
| WTL145-09X67 | 0.9X | 145 | 1.8 | <0.1 | <0.1 | 13.4 | F17.8 | 80 | 59.4*44.4 |
| WTL160-0845X67 | 0.845X | 160 | 2.2 | <0.1 | <0.1 | 15.3 | F19 | 60 | 63.2*47.3 |
| WTL130-072X67 | 0.72X | 130 | 2.5 | <0.1 | <0.1 | 14.6 | F15.6 | 80 | 74.2*55.6 |
| WTL180-062X67 | 0.62X | 180 | 3.0 | <0.1 | <0.1 | 15.3 | F14 | 80 | 86.2*64.5 |
| WTL210-0497X67 | 0.497X | 210 | 4.4 | <0.1 | <0.1 | 17.7 | F13 | 80 | 107.5*80.5 |
| WTL300-045X67 | 0.45X | 300 | 7.1 | <0.1 | <0.1 | 25.8 | F17 | 80 | 118.7*88.9 |
| WTL295-0356X67 | 0.356X | 295 | 5.8 | <0.1 | <0.1 | 16.8 | F8.9 | 80 | 150.1*112.4 |
| WTL305-0313X67 | 0.313X | 305 | 10.1 | <0.1 | <0.1 | 25.8 | F12 | 80 | 170.7*127.8 |
| WTL370-0282X67 | 0.282X | 370 | 10.5 | <0.1 | <0.1 | 24.0 | F10 | 90 | 189.4*141.8 |

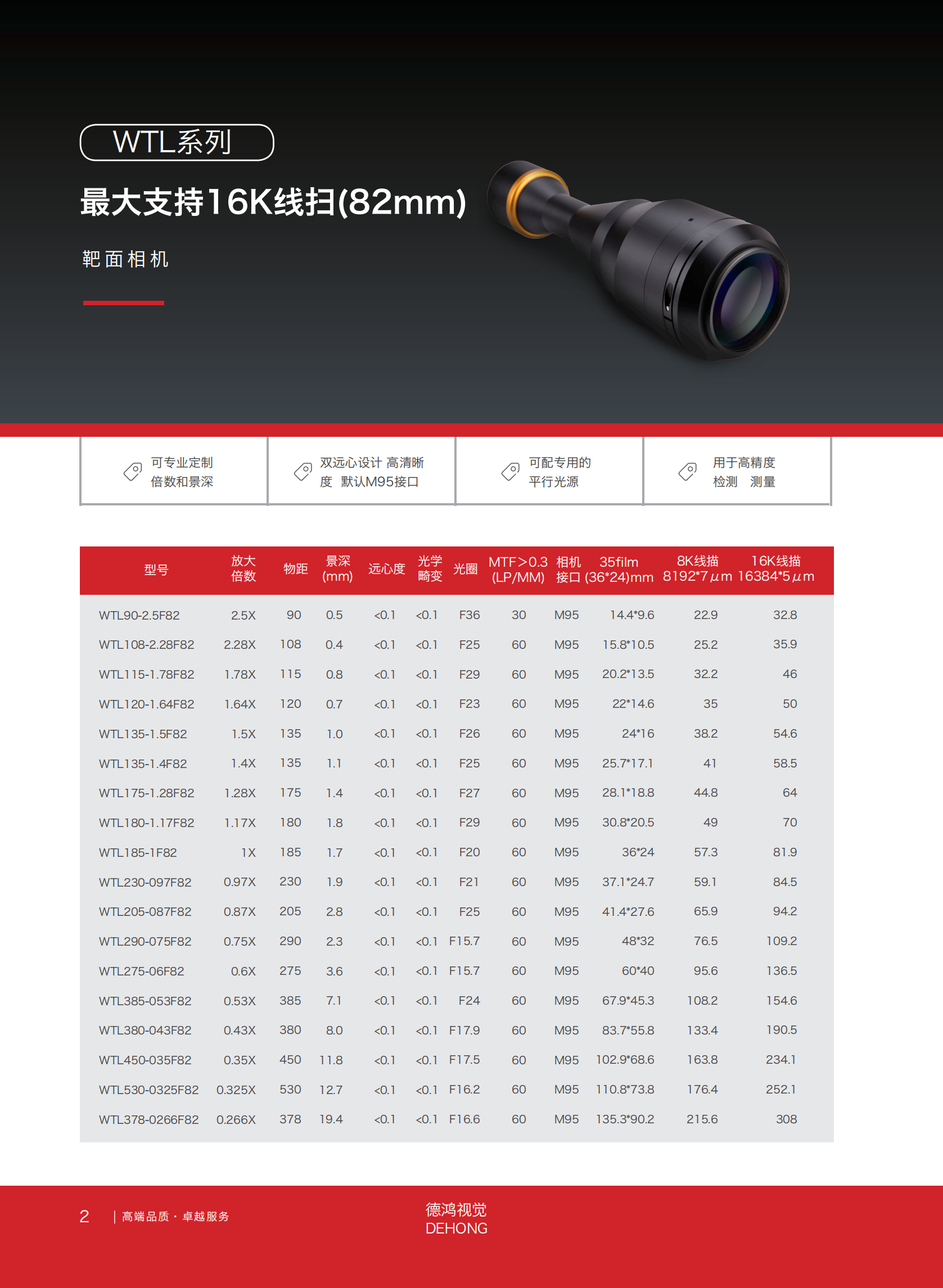

| 型號 | 倍數 | 物距 | 景深 （mm) | 遠心度 | 光學畸變 | 分辨率 （um) | 光圈 (F) | MTF>0.3 (LP/MM) | 35film (36*24)mm | 8K線描 8192*7μm | 16K線描 16384*5μm |
| WTL90-2.5F82 | 2.5X | 90 | 0.5 | <0.1 | <0.1 | 9.7 | F36 | 30 | 14.4*9.6 | 22.9 | 32.8 |
| WTL108-2.28F82 | 2.28X | 108 | 0.4 | <0.1 | <0.1 | 7.5 | F25 | 60 | 15.8*10.5 | 25.2 | 35.9 |
| WTL115-1.78F82 | 1.78X | 115 | 0.8 | <0.1 | <0.1 | 11.2 | F29 | 60 | 20.2*13.5 | 32.2 | 46 |
| WTL120-1.64F82 | 1.64X | 120 | 0.7 | <0.1 | <0.1 | 9.6 | F23 | 60 | 22*14.6 | 35 | 50 |
| WTL135-1.5F82 | 1.5X | 135 | 1.0 | <0.1 | <0.1 | 12.0 | F26 | 60 | 24*16 | 38.2 | 54.6 |
| WTL135-1.4F82 | 1.4X | 135 | 1.1 | <0.1 | <0.1 | 12.4 | F25 | 60 | 25.7*17.1 | 41 | 58.5 |
| WTL175-1.28F82 | 1.28X | 175 | 1.4 | <0.1 | <0.1 | 14.6 | F27 | 60 | 28.1*18.8 | 44.8 | 64 |
| WTL180-1.17F82 | 1.17X | 180 | 1.8 | <0.1 | <0.1 | 16.8 | F29 | 60 | 30.8*20.5 | 49 | 70 |
| WTL185-1F82 | 1X | 185 | 1.7 | <0.1 | <0.1 | 14.0 | F20 | 60 | 36*24 | 57.3 | 81.9 |
| WTL230-097F82 | 0.97X | 230 | 1.9 | <0.1 | <0.1 | 14.6 | F21 | 60 | 37.1*24.7 | 59.1 | 84.5 |
| WTL205-087F82 | 0.87X | 205 | 2.8 | <0.1 | <0.1 | 19.7 | F25 | 60 | 41.4*27.6 | 65.9 | 94.2 |
| WTL290-075F82 | 0.75X | 290 | 2.3 | <0.1 | <0.1 | 14.0 | F15.7 | 60 | 48*32 | 76.5 | 109.2 |
| WTL275-06F82 | 0.6X | 275 | 3.6 | <0.1 | <0.1 | 17.7 | F15.7 | 60 | 60*40 | 95.6 | 136.5 |
| WTL385-053F82 | 0.53X | 385 | 7.1 | <0.1 | <0.1 | 30.5 | F24 | 60 | 67.9*45.3 | 108.2 | 154.6 |
| WTL380-043F82 | 0.43X | 380 | 8.0 | <0.1 | <0.1 | 28.0 | F17.9 | 60 | 83.7*55.8 | 133.4 | 190.5 |
| WTL450-035F82 | 0.35X | 450 | 11.8 | <0.1 | <0.1 | 33.6 | F17.5 | 60 | 102.9*68.6 | 163.8 | 234.1 |
| WTL530-0325F82 | 0.325X | 530 | 12.7 | <0.1 | <0.1 | 33.6 | F16.2 | 60 | 110.8*73.8 | 176.4 | 252.1 |
| WTL378-0266F82 | 0.266X | 378 | 19.4 | <0.1 | <0.1 | 41.9 | F16.6 | 60 | 135.3*90.2 | 215.6 | 308 |
